CPXS003L

Features

Energy-saving: Save energy than two- fluid fog
Health: Produce a lot of anion
Convenient: Convenient installation,easy to extend
Economic: Low cost,simple maintenance
Efficient: Small partical,significient effect
Safe: Can be used in inflammable and explosive environment

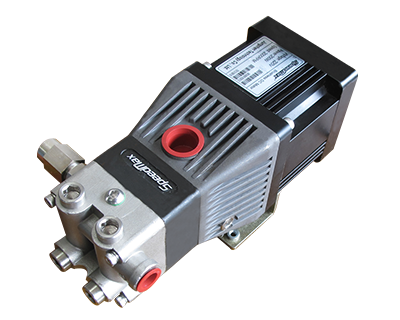

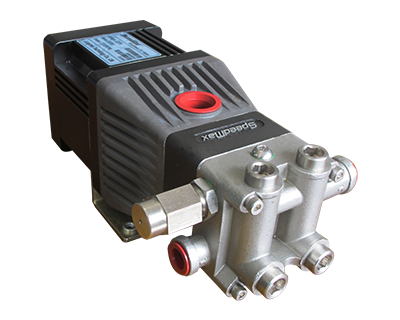

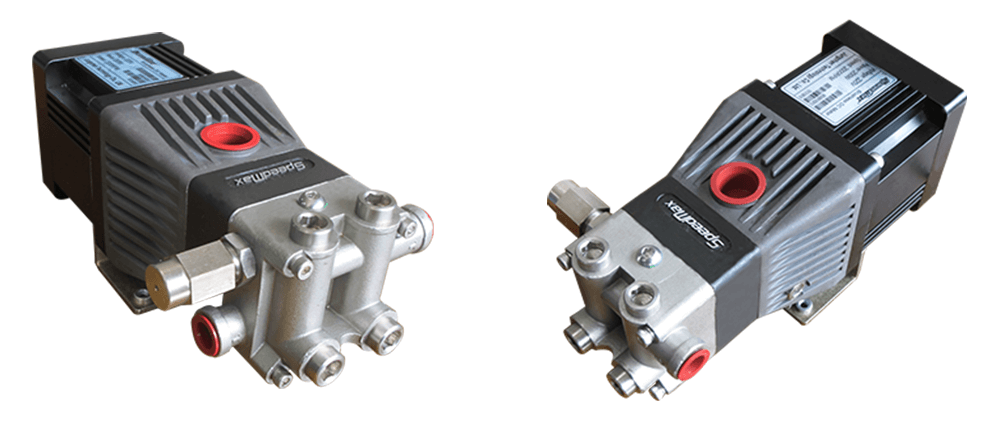

High Pressure Pump

Model	Rated Pressure （Bar）	Max Pressure （Bar）	Flowrate （L/Min）	Power （W）	Voltage （V）	Current （A）	Speed （RPM）	Drive Model
CPXS003L/DC024V	50	70	0.1-0.3	150	24	7.81	700-800	B-205D1
CPXS003L/DC036V	50	70	0.1-0.3	150	36	5.20	700-800	B-205D1
CPXS003L/AC110V	50	70	0.1-0.3	150	110	1.70	700-800	B-219D1
CPXS003L/AC220V	50	70	0.1-0.3	150	220	0.85	700-800	B-219D1
Notes	Water pressure should more than 1bar 1bar=1.02kgf/cm2=14.5psi=0.1Mpa

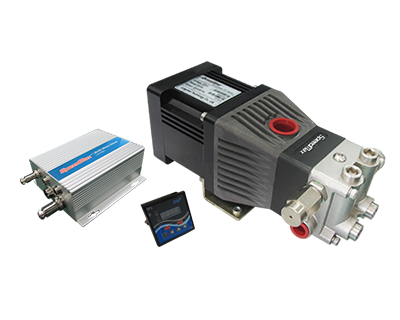

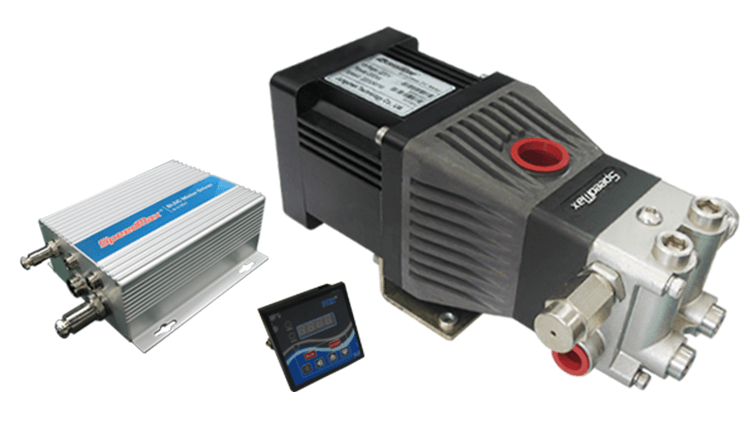

NO.	Picture	Model	Name	Notes
1		B-205D1	BLDC Drive	CPXS003L/DC024V CPXS003L/DC036V
		PD72-68A	Digital Controller
2		B-219D1	BLDC Drive	CPXS003L/AC110V CPXS003L/AC220V
		PD72-68A	Digital Controller

Check	Daily	500 Hrs.	1500 Hrs.	3000 Hrs.
Oil Leaks	√
Water Leaks	√
Oil Change		√	√	√
Seal Change			√	√

This limited warranty applies only when the product is installed, operated and maintained in accordance with this manual. Warranty period is one year from the date of manufacturer's shipment.
Warranty will not apply due to the following reasons. A paid services can be provided according to customer requirements:

(1) Failure due to the misuse of the user.
(2) All rubber seals.
(3) Defects due to the use of spare parts from other manufacturers.
(4) Failure due to unauthorized demolition of the high-pressure pump body S1and S2 of transmission box.
(5) Using the pump and its accessories out of the scope of the user manual.
