CPXS010L

Features

- Energy-saving: Save energy than two- fluid fog
- Health: Produce a lot of anion
- Convenient: Convenient installation,easy to extend
- Economic: Low cost,simple maintenance
- Efficient: Small partical,significient effect
- Safe: Can be used in inflammable and explosive environment

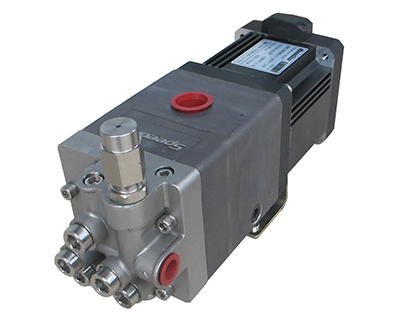

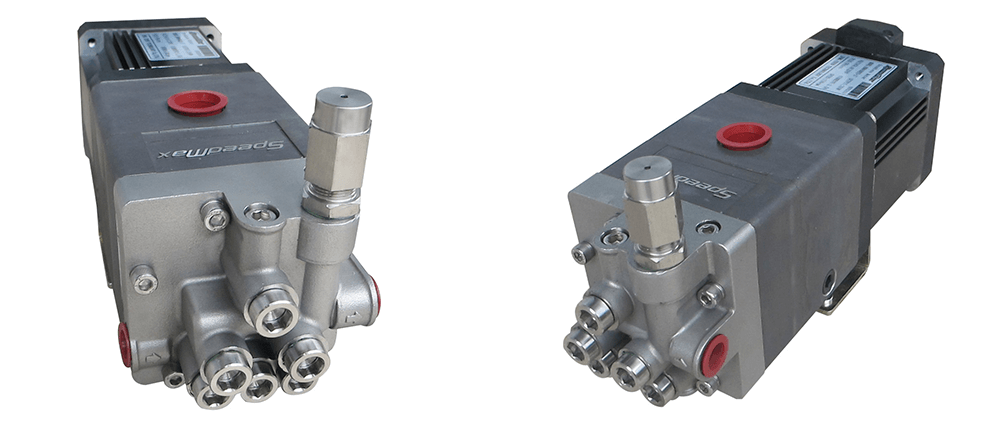

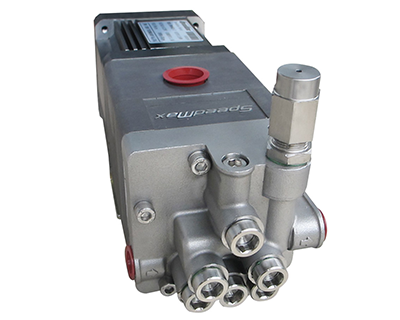

High Pressure Pump

Model	Rated Pressure （Bar）	Max Pressure （Bar）	Flowrate （L/Min）	Power （W）	Voltage （V）	Current （A）	Speed （RPM）	Drive Model
CPXS010L/DC024V	50	70	0.4-1.0	250	24	13.00	800-900	B-205D1
CPXS010L/DC036V	50	70	0.4-1.0	250	36	8.75	800-900	B-205D1
CPXS010L/AC110V	50	70	0.4-1.0	250	110	2.80	800-900	B-219D1
CPXS010L/AC220V	50	70	0.4-1.0	250	220	1.40	800-900	B-219D1
Notes	Water pressure should more than 1bar 1bar=1.02kgf/cm2=14.5psi=0.1Mpa

NO.	Picture	Model	Name	Notes

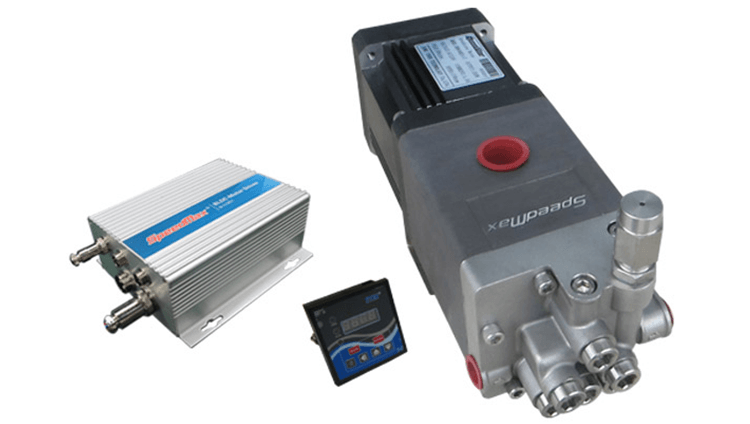

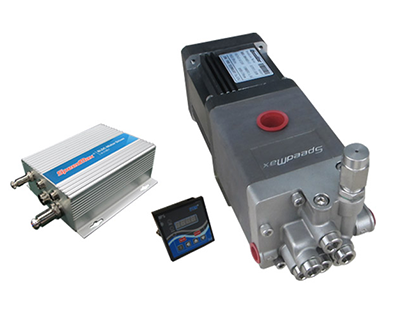

1		B-205D1	BLDC Drive	CPXS010L/DC024V CPXS010L/DC036V
		PD72-68A	Digital Controller
2		B-219D1	BLDC Drive	CPXS010L/AC110V CPXS010L/AC220V
		PD72-68A	Digital Controller

Check	Daily	500 Hrs.	1500 Hrs.	3000 Hrs.
Oil Leaks	√
Water Leaks	√
Oil Change		√	√	√
Seal Change			√	√

This limited warranty applies only when the product is installed, operated and maintained in accordance with this manual. Warranty period is one year from the date of manufacturer's shipment.
Warranty will not apply due to the following reasons. A paid services can be provided according to customer requirements:

(1) Failure due to the misuse of the user.
(2) All rubber seals.
(3) Defects due to the use of spare parts from other manufacturers.
(4) Failure due to unauthorized demolition of the high-pressure pump body S1and S2 of transmission box.
(5) Using the pump and its accessories out of the scope of the user manual.
